SAKAGAMI-1

SAKAGAMI液压密封：

*活塞专用密封件(packing)*

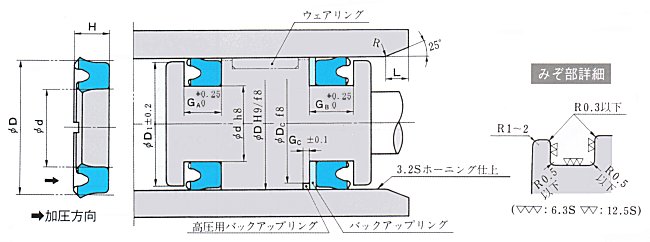

GPY-packing

Packing / Groove Dimensions　(Unit：mm)									Instruction code
D	d	H	GA	GB	GC	D 1	DC	L	Standard(RN919)	Standard backup ring	High pressure backup ring
32	22	6.2	7	9	2.5	31	28	4	GPY-0032001N919	TBC-0022008T114	PE-Packing instruction code
40	30	6.2	7	9	2.5	39	36	4	GPY- 40	TC-GPY- 40	PE-GPY- 40
45	35	6.2	7	9	2.5	44	41	4	GPY- 45	TC-GPY- 45	PE-GPY- 45
50	40	6.2	7	9	2.5	49	46	4	GPY- 50	TC-GPY- 50	PE-GPY- 50
55	45	6.2	7	9	2.5	54	51	4	GPY- 55	TC-GPY- 55	PE-GPY- 55
60	50	6.2	7	9	2.5	59	56	4	GPY- 60	TC-GPY- 60	PE-GPY- 60
63	53	6.2	7	9	2.5	62	59	4	GPY- 63	TC-GPY- 63	PE-GPY- 63
65	52	7.7	8.5	11	3	63.5	59	5	GPY- 65	TC-GPY- 65	PE-GPY- 65
70	57	7.7	8.5	11	3	68.5	64	5	GPY- 70	TC-GPY- 70	PE-GPY- 70
75	62	7.7	8.5	11	3	73.5	69	5	GPY- 75	TC-GPY- 75	PE-GPY- 75
80	65	9.2	10	12.5	3	78.5	74	5	GPY- 80	TC-GPY- 80	PE-GPY- 80
85	70	9.2	10	12.5	3	83.5	79	5	GPY- 85	TC-GPY- 85	PE-GPY- 85
90	75	9.2	10	12.5	3	88.5	84	5	GPY- 90	TC-GPY- 90	PE-GPY- 90
100	80	12	13	16	3.5	98	93	6	GPY-100	TC-GPY-100	PE-GPY-100
110	90	12	13	16	3.5	108	103	6	GPY-110	TC-GPY-110	PE-GPY-110
120	100	12	13	16	3.5	118	113	6	GPY-120	TC-GPY-120	PE-GPY-120
125	105	12	13	16	3.5	123	118	6	GPY-125	TC-GPY-125	PE-GPY-125
130	110	12	13	16	3.5	128	123	6	GPY-130	TC-GPY-130	PE-GPY-130
140	120	12	13	16	3.5	138	133	6	GPY-140	TC-GPY-140	PE-GPY-140
150	125	16	17	20	4	148	142	7	GPY-150	TC-GPY-150	PE-GPY-150
160	135	16	17	20	4	158	152	7	GPY-160	TC-GPY-160	PE-GPY-160
180	155	16	17	20	4	178	172	7	GPY-180	TC-GPY-180	PE-GPY-180
200	175	16	17	20	4	198	192	7	GPY-200	TC-GPY-200	PE-GPY-200
250	225	16	17	20	4	248	242	7	GPY-250	TC-GPY-250	PE-GPY-250

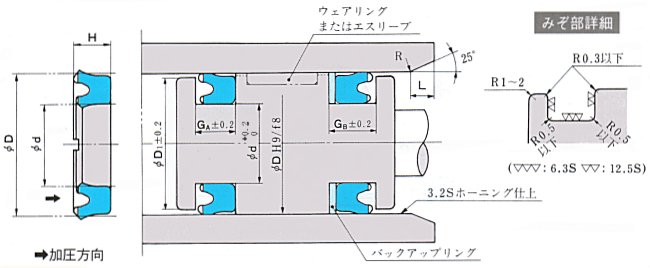

RGY-Packing

Packing / Groove Dimensions　(Unit：mm)							Instruction code		Compatible SKY
D	d	H	G A	G B	D 1	L	Standard(RN923)	Joint-use backup ring	Packing
40	30	6.2	7	8.5	39	3.5	RGY- 40	TCS-40×30	SKY- 30
45	35	6.2	7	8.5	44	3.5	RGY- 45	TCS-45×35	SKY- 35
50	40	6.2	7	8.5	49	3.5	RGY- 50	TCS-50×40	SKY- 40
55	45	6.2	7	8.5	54	3.5	RGY- 55	TCS-55×45	SKY- 45
60	50	6.2	7	8.5	59	3.5	RGY- 60	TCS-60×50	SKY- 50
63	53	6.2	7	8.5	62	3.5	RGY- 63	TCS-63×53	SKY- 53
65	55	6.2	7	8.5	64	3.5	RGY- 65	TCS-65×55	SKY- 55
70	60	6.2	7	8.5	69	3.5	RGY- 70	TCS-70×60	SKY- 60
70	57	8.2	9	11	69	4	RGY- 70B	TCS-70×57	――
75	65	6.2	7	8.5	74	4	RGY- 75	TCS-75×65	SKY- 65
75	62	8.2	9	11	74	4	RGY- 75B	TCS-75×62	――
80	70	6.2	7	8.5	79	4	RGY- 80	TCS-80×70	SKY- 70
80	71	6.2	7	8.5	79	4	RGY- 80A	TCS-80×71	SKY- 71
80	65	9.2	10	12	79	4	RGY- 80B	TCS-80×65	――
90	80	6.2	7	8.5	89	4	RGY- 90	TCS-90×80	SKY- 80
90	75	9.2	10	12	88	4	RGY- 90B	TCS-90×75	――
100	85	9.2	10	12	98	4	RGY-100	TCS-100×85	SKY- 85
110	95	9.2	10	12	108	4	RGY-110	TCS-110×95	SKY- 95
120	106	8.7	9.5	11.5	118	4	RGY-120	TCS-120×106	SKY-106
125	112	8.7	9.5	11.5	123	4	RGY-125	TCS-125×112	SKY-112, 112A
140	125	9.2	10	12	138	4	RGY-140	TCS-140×125	SKY-125
150	136	8.7	9.5	11.5	148	4	RGY-150	TCS-150×136	SKY-136
160	145	9.2	10	12	158	4	RGY-160	TCS-160×145	SKY-145
180	165	9.2	10	12	178	4	RGY-180	TCS-180×165	SKY-165
200	180	12.2	13	15.5	198	5.5	RGY-200	TCS-200×180	SKY-180
224	204	12.2	13	15.5	222	5.5	RGY-224	TCS-224×204	SKY-204
250	230	12.2	13	15.5	248	5.5	RGY-250	TCS-250×230	SKY-230

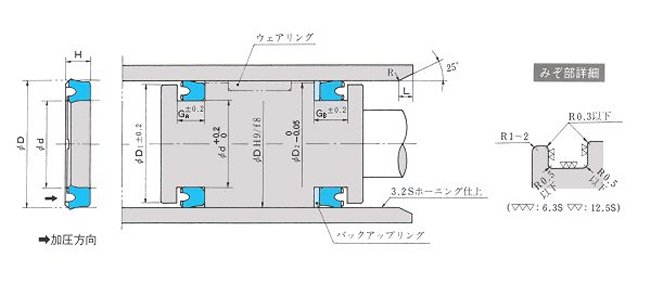

SGY-Packing

Packing / Groove Dimensions (Unit：mm)								Instruction code
d	D	H	D 1	D 2	G A	G B	L	Standard(RN812)	Joint-use backup ring
40	30	6.3	39	39.5	7	8.5	3.5	?SGY- 40A	TCS-40×30
45	35	6.3	44	44.5	7	8.5	3.5	?SGY- 45A	TCS-45×35
50	40	6.3	49	49.5	7	8.5	3.5	?SGY- 50A	TCS-50×40
55	45	6.3	54	54.4	7	8.5	3.5	?SGY- 55A	TCS-55×45
60	50	6.3	59	59.4	7	8.5	3.5	?SGY- 60A	TCS-60×50
65	55	6.3	64	64.4	7	8.5	3.5	?SGY- 65	TCS-65×55
70	60	6.3	69	69.4	7	8.5	3.5	?SGY- 70	TCS-70×60
70	57	7.7	69	69.4	8.5	10.5	4.5	?SGY- 70A	TCS-70×57
75	65	6.3	74	74.4	7	8.5	4.5	?SGY- 75	TCS-75×65
75	62	7.7	74	74.4	8.5	10.5	4.5	?SGY- 75A	TCS-75×62
80	71	6.3	79	79.4	7	8.5	4.5	?SGY- 80	TCS-80×71
80	65	9.2	79	79.4	10	12	4.5	?SGY- 80A	TCS-80×65
85	75	6.3	84	84.4	7	8.5	4.5	?SGY- 85	TCS-85×75
85	70	9.2	84	84.4	10	12	4.5	?SGY- 85A	TCS-85×70
90	80	6.3	89	89.4	7	8.5	4.5	?SGY- 90	TCS-90×80
90	75	9.2	89	89.4	10	12	4.5	?SGY- 90A	TCS-90×75
95	80	9.2	94	94.4	10	12	4.5	?SGY- 95A	TCS-95×80
95	85	6.3	94	94.4	7	8.5	4.5	?SGY- 95B	TCS-95×85
100	85	9.2	98	99.4	10	12	4.5	?SGY-100	TCS-100×85
105	90	9.2	103	104.4	10	12	4.5	?SGY-105	TCS-105×90
110	95	9.2	108	109.4	10	12	4.5	?SGY-110	TCS-110×95
115	100	9.2	113	114.4	10	12	4.5	?SGY-115	TCS-115×100
120	106	8.7	118	119.4	9.5	11.5	4.5	?SGY-120	TCS-120×106
125	112	9.2	123	124.3	10	12	4.5	?SGY-125	TCS-125×112
130	115	8.7	128	129.3	9.5	11.5	4.5	?SGY-130	TCS-130×115
140	125	9.2	138	139.3	10	12	4.5	?SGY-140	TCS-140×125
150	136	8.7	148	149.3	9.5	11.5	4.5	?SGY-150	TCS-150×136
160	145	9.2	158	159.3	10	12	4.5	?SGY-160	TCS-160×145
180	165	9.2	178	179.3	10	12	4.5	?SGY-180	TCS-180×165
200	180	12	198	199.2	13	15.5	5.5	?SGY-200	TCS-200×180

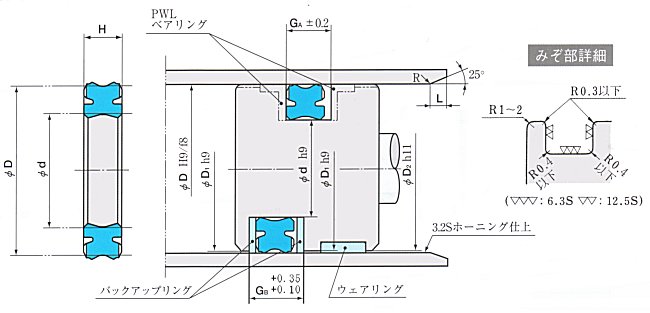

RGU-Packing

Packing / Groove Dimensions (Unit：mm)								Instruction code
d	D	H	G A	G B	D 1	D 2	L	Standard(RN923)	Joint-use backup ring
40	30	6.5	7	11	39.5	38.5	2.5	RGU-40	TBC-40×30×2
45	35	6.5	7	11	44.5	43.5	2.5	RGU-45	TBC-45×35×2
50	40	6.5	7	11	49.5	48.5	2.5	RGU-50	TBC-50×40×2
55	45	6.5	7	11	54.4	53	2.5	RGU-55	TBC-55×45×2
60	50	6.5	7	11	59.4	58	2.5	RGU-60	TBC-60×50×2
63	53	6.5	7	11	62.4	61	2.5	RGU-63	TBC-63×53×2
65	55	6.5	7	12	64.4	63	2.5	RGU-65	TBC-65×55×2.5
70	60	6.5	7	12	69.4	68	2.5	RGU-70	TBC-70×60×2.5
75	65	6.5	7	12	74.4	73	2.5	RGU-75	TBC-75×65×2.5
80	67	8	8.5	13.5	79.4	78	3	RGU-80	TBC-80×67×2.5
85	72	8	8.5	13.5	84.4	83	3	RGU-85	TBC-85×72×2.5
90	77	8	8.5	13.5	89.4	88	3	RGU-90	TBC-90×77×2.5
100	85	9	10	16	99.4	98	4	RGU-100	TBC-100×85×3

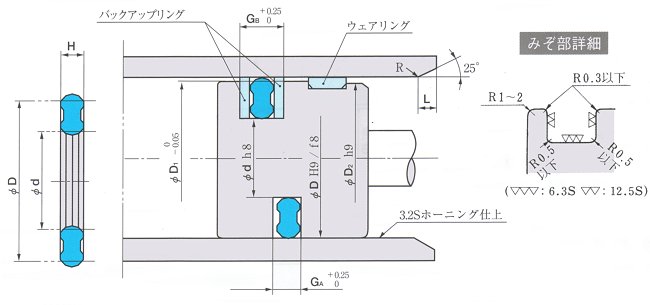

HSD-packing

Packing / Groove Dimensions (Unit：mm)								Instruction code
d	D	H	G A	G B	D 1	D 2	L	Standard(RN906)	Joint-use backup ring
20	14	1.9	2.4	4.4	19.5	19	1.5	HSD-20	TCS-20×14
25	17	2.6	3.2	5.2	24.5	24	2	HSD-25	TCS-25×17
30	22	2.6	3.2	5.2	29.5	29	2	HSD-30	TCS-30×22
32	24	2.6	3.2	5.2	31.5	30.5	2	HSD-32	TCS-32×24
35	27	2.6	3.2	5.2	34.5	33.5	2	HSD-35	TCS-35×27
40	32	2.6	3.2	5.2	39.5	38.5	2	HSD-40	TCS-40×32
40	30	3.4	4	7	39.5	38.5	2.5	HSD-40A	TCS-40×30
45	35	3.4	4	7	44.5	43.5	2.5	HSD-45	TCS-45×35
50	40	3.4	4	7	49.5	48.5	2.5	HSD-50	TCS-50×40
55	45	3.4	4	7	54.4	53	2.5	HSD-55	TCS-55×45
60	50	3.4	4	7	59.4	58	2.5	HSD-60	TCS-60×50
63	53	3.4	4	7	62.4	61	2.5	HSD-63	TCS-63×53
65	55	3.4	4	7	64.4	63	2.5	HSD-65	TCS-65×55
70	55	5.2	6	10	69.4	68	3	HSD-70	TCS-70×55
80	65	5.2	6	10	79.4	78	3	HSD-80	TCS-80×65
90	75	5.2	6	10	89.4	88	3	HSD-90	TCS-90×75
100	85	5.2	6	10	99.4	98	3	HSD-100	TCS-100×85

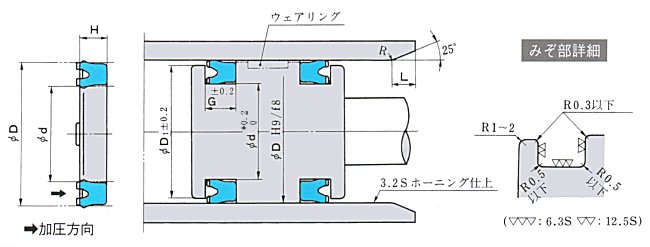

OSY-Packing

Packing / Groove Dimensions (Unit：mm)						Instruction code
d	D	H	G	D 1	L	Standard(RN 801)
40	30	5.8	7	39	3	OSY- 40
50	40	5.8	7	49	3	OSY- 50
63	53	5.8	7	62	3	OSY- 63
80	70	5.8	7	79	3	OSY- 80
100	85	8.5	10	98.5	4	OSY-100
125	110	8.5	10	123.5	4	OSY-125
140	125	8.5	10	138.5	4	OSY-140
160	145	8.5	10	158.5	4	OSY-160
180	165	8.5	10	178.5	4	OSY-180

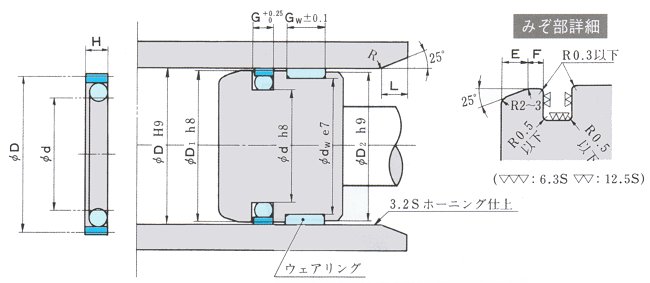

ST-Packing

Packing / Groove Dimensions (Unit：mm)											Instruction code
d	D	H	G	D 1	dw	D 2	Gw	E	F	L	Standard(PT 111)
20	14	3	3.2	19.6	17	19	3	4	1	3	ST-20
25	19	3	3.2	24.6	22	24	3	4	1	3	ST-25
30	21.5	3.7	4	29.5	26	29	5	6	2	3	ST-30
31.5	23	3.7	4	31	27.5	30	8	6	2	3	ST-31.5
32	23.5	3.7	4	31.5	28	30.5	8	6	2	3	ST-32
35	26.5	3.7	4	34.5	31	33.5	8	6	2	3	ST-35
35.5	27	3.7	4	35	31.5	34	10	6	2	3	ST-35.5
40	31.5	3.7	4	39.5	36	38.5	10	6	2	3	ST-40
45	36.5	3.7	4	44.5	41	43.5	12	6	2	3	ST-45
50	41.5	3.7	4	49.5	46	48.5	12	6	2	3	ST-50
53	44.5	3.7	4	52.4	47	51	16	6	2	3	ST-53
55	46.5	3.7	4	54.4	49	53	16	6	2	3	ST-55
56	47.5	3.7	4	55.4	50	54	16	6	2	3	ST-56
60	51.5	3.7	4	59.4	54	58	16	6	2	3	ST-60
63	49	6.2	6.5	62.4	57	61	16	7	3	4	ST-63
65	51	6.2	6.5	64.4	59	63	16	7	3	4	ST-65
70	56	6.2	6.5	69.4	64	68	20	7	3	4	ST-70
71	57	6.2	6.5	70.4	65	69	20	7	3	4	ST-71
75	61	6.2	6.5	74.4	69	73	20	7	3	4	ST-75
80	66	6.2	6.5	79.4	74	78	20	7	3	4	ST-80
85	71	6.2	6.5	84.4	79	83	20	7	3	4	ST-85
90	76	6.2	6.5	89.4	84	88	25	7	3	4	ST-90
95	81	6.2	6.5	94.4	89	93	25	7	3	4	ST-95
100	86	6.2	6.5	99.4	94	98	25	7	3	4	ST-100
105	91	6.2	6.5	104.4	99	103	25	7	3	4	ST-105
110	96	6.2	6.5	109.4	104	108	30	7	3	4	ST-110
112	98	6.2	6.5	111.4	106	110	30	7	3	4	ST-112
115	101	6.2	6.5	114.4	109	113	30	7	3	4	ST-115
120	106	6.2	6.5	119.4	114	118	30	7	3	4	ST-120
125	111	6.2	6.5	124.3	119	123	30	7	3	4	ST-125
130	116	6.2	6.5	129.3	124	128	30	7	3	4	ST-130
135	121	6.2	6.5	134.3	129	133	30	7	3	4	ST-135
140	126	6.2	6.5	139.3	134	138	40	7	3	4	ST-140
150	136	6.2	6.5	149.3	144	148	40	7	3	4	ST-150
160	146	6.2	6.5	159.3	154	158	40	7	3	4	ST-160
170	150	9	10	169.3	164	168	50	11	4	6	ST-170
180	160	9	10	179.3	174	178	50	11	4	6	ST-180
190	170	9	10	189.3	184	188	50	11	4	6	ST-190
200	180	9	10	199.2	194	198	50	11	4	6	ST-200
210	190	9	10	209.2	204	208	50	11	4	6	ST-210
220	200	9	10	219.2	214	218	60	11	4	6	ST-220
224	204	9	10	223.2	218	222	60	11	4	6	ST-224
230	210	9	10	229.2	224	228	60	11	4	6	ST-230
240	220	9	10	239.2	234	238	60	11	4	6	ST-240
250	230	9	10	249.2	244	248	60	11	4	6	ST-250
260	240	9	10	259.2	252	257	60	11	4	6	ST-260
270	250	9	10	269.2	262	267	60	11	4	6	ST-270
280	260	9	10	279.2	272	277	60	11	4	6	ST-280
290	270	9	10	289.2	282	287	60	11	4	6	ST-290
300	280	9	10	299.2	292	297	60	11	4	6	ST-300
310	290	9	10	309.2	302	307	70	11	4	6	ST-310
320	300	9	10	319.2	312	317	70	11	4	6	ST-320
340	320	9	10	339.2	332	337	70	11	4	6	ST-340
350	330	9	10	349.2	342	347	70	11	4	6	ST-350
360	340	9	10	359.2	352	357	70	11	4	6	ST-360
375	355	9	10	374.2	367	372	70	11	4	6	ST-375
380	360	9	10	379.2	372	377	70	11	4	6	ST-380
400	380	9	10	399.2	392	397	70	11	4	6	ST-400

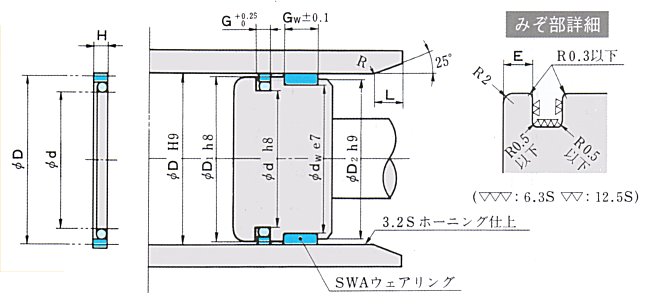

STS-Packing

Packing / Groove Dimensions (Unit：mm)										Instruction code
d	D	H	G	D 1	dw	D 2	Gw	E	L	Standard(PT 111)
20	15	1.7	2	19.5	17	19	3	3	2	STS-20
25	20	1.7	2	24.5	22	24	3	3	2	STS-25
30	24	2.2	2.5	29.5	27	29	4	4	2	STS-30
32	26	2.2	2.5	31.5	29	31	4	4	2	STS-32
35	29	2.2	2.5	34.5	32	34	4	4	2	STS-35
40	33.5	2.2	2.5	39.5	36	39	5	4	2	STS-40
45	38.5	2.2	2.5	44.5	41	44	5	4	2	STS-45
50	43.5	2.2	2.5	49.5	46	49	5	4	2	STS-50
55	45.5	3.3	3.6	54.5	51	54	5	6	3	STS-55
60	50.5	3.3	3.6	59.5	56	59	6	6	3	STS-60
63	53.5	3.3	3.6	62.5	59	62	6	6	3	STS-63
65	55.5	3.3	3.6	64.5	61	64	6	6	3	STS-65
70	60.5	3.3	3.6	69.5	66	69	6	6	3	STS-70
75	65.5	3.3	3.6	74.5	71	74	6	6	3	STS-75
80	70.5	3.3	3.6	79.5	76	79	8	6	3	STS-80
85	75.5	3.3	3.6	84.5	81	84	8	6	3	STS-85
90	80.5	3.3	3.6	89.5	86	89	8	6	3	STS-90
95	85.5	3.3	3.6	94.5	91	94	8	6	3	STS-95
100	90.5	3.3	3.6	99.5	95	98	10	6	3	STS-100

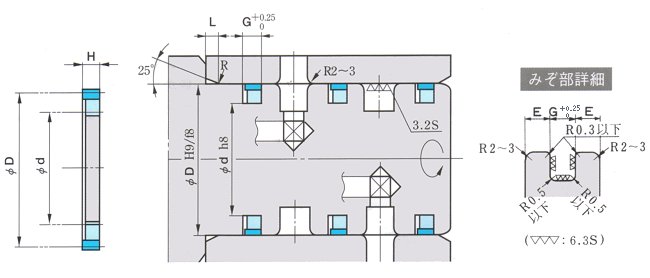

STR-Packing

Packing / Groove Dimensions (Unit：mm)						Instruction code
d	D	H	G	E(reference)	L	Standard(PT 151)
50	40	4.8	5.0	4	3	STR- 50
60	50	4.8	5.0	4	3	STR- 60
70	60	4.8	5.0	4	3	STR- 70
80	70	4.8	5.0	4	3	STR- 80
90	80	4.8	5.0	4	3	STR- 90
100	90	4.8	5.0	4	3	STR-100
110	100	4.8	5.0	4	3	STR-110
120	108	5.3	5.5	5	4	STR-120
130	118	5.3	5.5	5	4	STR-130
140	128	5.3	5.5	5	4	STR-140
150	138	5.3	5.5	5	4	STR-150
160	148	5.3	5.5	5	4	STR-160
165	153	5.3	5.5	5	4	STR-165

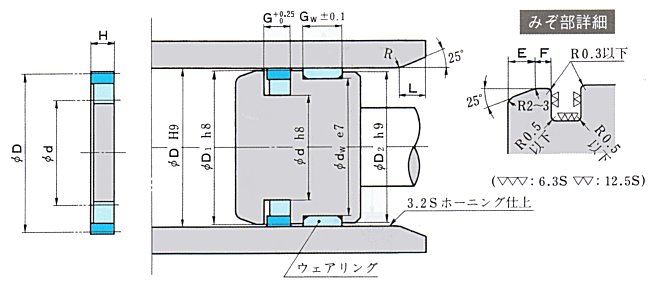

STG-Packing

Packing / Groove Dimensions (Unit：mm)											Instruction code
d	D	H	G	D 1	dw	D 2	Gw	E	F	L	Standard(PT 111)
40	29	4.8	5	39.5	36	38.5	10	6	2	3	STG-40
50	39	4.8	5	49.5	46	48.5	12	6	2	3	STG-50
60	49	4.8	5	59.4	54	58	16	6	2	3	STG-60
63	52	4.8	5	62.4	57	61	16	6	2	3	STG-63
65	52	4.8	5	64.4	59	63	16	6	2	3	STG-65
70	59	4.8	5	69.4	64	68	20	6	2	3	STG-70
80	69	4.8	5	79.4	74	78	20	6	2	3	STG-80
90	79	4.8	5	89.4	84	88	25	6	2	3	STG-90
100	86	5.8	6	99.4	94	98	25	7	3	4	STG-100
110	94	5.8	6	109.4	104	108	30	7	3	4	STG-110
120	104	5.8	6	119.4	114	118	30	7	3	4	STG-120
125	109	5.8	6	124.3	119	123	30	7	3	4	STG-125
140	122	7.7	8	139.3	134	138	40	8	4	4	STG-140
150	132	7.7	8	149.3	144	148	40	8	4	4	STG-150
160	140	8.7	9	159.3	154	158	40	10	4	6	STG-160
170	150	8.7	9	169.3	164	168	50	10	4	6	STG-170
180	160	8.7	9	179.3	174	178	50	10	4	6	STG-180
200	178	9.6	10	199.2	194	198	50	10	4	6	STG-200
224	200	9.6	10	223.2	218	222	60	10	4	6	STG-224
225	201	9.6	10	224.2	219	223	60	10	4	6	STG-225
250	226	9.6	10	249.2	244	248	60	10	4	6	STG-250

下一页　　　　　　　　　　　返回

上海煦韵传动件有限公司
电话：021-56304826 56625364 传真：021-56304826
