产 品
  轴承

德国STAR滑块:
1651 1653 1665 1622 1623 1666 1621 1624 1693
1663 1694 1664 1661 1662 1631 1632 2001 2011
德国STAR滚珠丝杠:(略)

  密封件:(National、JM Clipper、GARlock-klozure、SAKAGAMI/阪上)

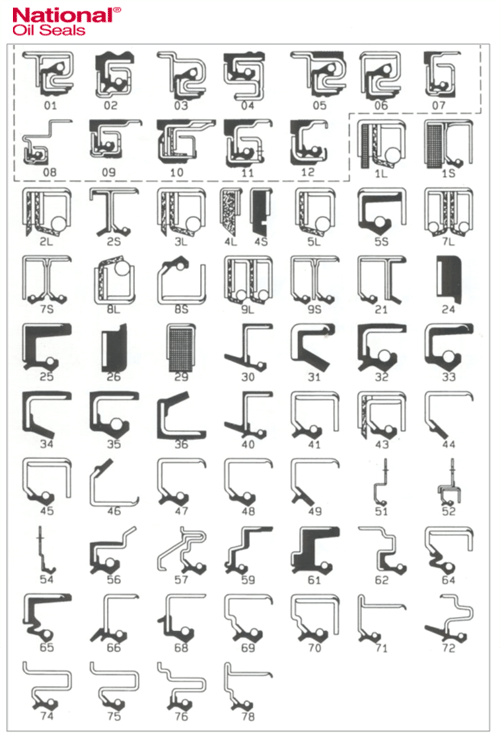

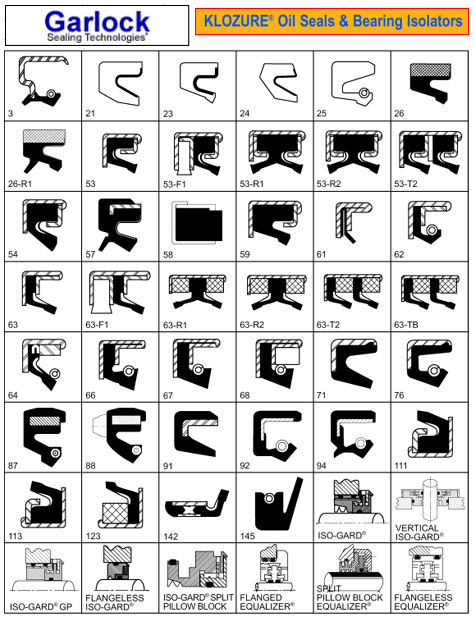

NATIONAL油封剖面图 NATIONAL OIL SEALS型号/Excel文档 JMCLIPPER油封剖面图 GARLOCK油封剖面图

液压用密封件 气压用密封件 相关密封件
  聚四氟乙烯U形圈安装尺寸表
  补充资料:
  直线运动产品(滑块)对照表:Linear.pdf

各密封件厂家之旋转油封对照表
NOK ARS KOYO/CR NDK M CFW National Dichtomatik GARLOCK FP/ATS
1 SC S MHS IS/ISR AD BAU/BA 35 WA 92 G
2 SB MS/AK CRS/CRW1/HMS ISM AC BTU/B1 48 WB 76 M
3 TC SD MHSA ISD/ISRD UE BASL 32 WAS 94 GP
4 TB MSD/PK CRSA/CRWA1/HMSA ISMD UD BTUSL/B1SE 47 WBS 3,78 MP
5 VC SO MH DS/DSR KE BAOF 34 91
6 VB BK/MSO CR/HM14 DSM KD B1OF 31/44 71
7 KC SDO MHA DSD/DSR KES-1 BAOFSL
8 KB MSO HMA DSMD KDS-1 B1OFSL 49
9 TCV VHBA-LPJ/CRWAR5 ISPD
10 TCN VHBA-LPJ ISPD BABSL
11 DC SW MHSD ISVW/ISW YD BADUO
12 DB HMSD/YSD YC B1DUO 77 53R2
13 OC OS XMHS OF SD BAJ
14 MG SS/SR MS SS AE BM
15 ZF MZ GS M
16 TA CRWHA1 B2SL 41 WCS L2P
17 SA CRWH1 B2 45 WC 68 L2M

stieber 单向离合器轴承 ( 部分 )
型号 尺寸   型号 尺寸   型号 尺寸
stieber DC2222G 22,22 X 38,88 X 10 stieber AS6 6 X 19 X 6 stieber ASNU8 8 X 35 X 13
stieber DC2776 27,76 X 44,42 X 13,5 stieber AS8 8 X 24 X 8 stieber ASNU12 12 X 35 X 13
stieber DC3034 30,34 X 47,00 X 13,5 stieber AS10 10 X 30 X 9 stieber ASNU15 15 X 42 X 18
stieber DC3175(3C) 31,75 X 48,41 X 13,5 stieber AS12 12 X 32 X 10 stieber ASNU17 17 X 47 X 19
stieber DC3809 A 38,09 X 54,75 X 16 stieber AS15 15 X 35 X 11 stieber ASNU20 20 X 52 X 21
stieber DC4127(3C) 41,27 X 57,93 X 13,5 stieber AS20 20 X 47 X 14 stieber ASNU25 25 X 62 X 24
stieber DC4445 A 44,45 X 61,11 X 16 stieber AS25 25 X 52 X 15 stieber ASNU30 30 X 72 X 27
stieber DC4972(4C) 49,72 X 66,38 X 13,5 stieber AS30 30 X 62 X 16 stieber ASNU35 35 X 80 X 31
stieber DC5476 A 54,76 X 71,42 X 16 stieber AS35 35 X 72 X 17 stieber ASNU40 40 X 90 X 33
stieber DC5476A(4C) 54,76 X 71,42 X 16 stieber AS40 40 X 80 X 18 stieber ASNU45 45 X 100 X 36
stieber DC5476B(4C) 54,76 X 71,42 X 21 stieber AS45 45 X 85 X 19 stieber ASNU50 50 X 110 X 40
stieber DC5476 C(4C) 54,76 X 71,42 X 25,4 stieber AS50 50 X 90 X 20
stieber DC5776 A 57,76 X 74,42 X 16 stieber AS55 55 X 100 X 21 stieber GFK20 20 X 37 X 23
stieber DC7221(5C) 72,21 X 88,87 X 13,5 stieber AS60 60 X 110 X 22 stieber GFK25 25 X 42 X 23
stieber DC7221B 72,21 X 88,87 X 21 stieber GFK30 30 X 47 X 23
stieber DC7221B(5C) 72,21 X 88,87 X 21 stieber GFR15 15 X 68 X 28 stieber GFK35 35 X 55 X 27
stieber DC7969C(5C) 79,69 X 96,35 X 25,4 stieber GFR20 20 X 75 X 34 stieber GFK40 40 X 62 X 30
stieber DC8334C 83,34 X100,00 X 25,4 stieber GFR25 25 X 90 X 35 stieber GFK45 45 X 68 X 30
stieber DC10323 A 103,23 X119,89X16 stieber GFR30 30 X 100 X 43 stieber GFK50 50 X 72 X 30
stieber DC11739A(6C) 117,3 X 136,3 X15,6 stieber GFR35 35 X 110 X 45
stieber DC12388C(11C) 123,88 X142,88X25,4 stieber GFR40 40 X 125 X 53 CSK、NF系列略去
  台湾STRONGAIR产品常用型号接近开关RJ-2、手控阀MPV-522V、MPV-522SL、感应器ST-11R 电磁阀MPS-1525、MPS-2525、MPS-2526、MPS-3525、MPS-322S等
